Industrial and commercial roof top power ventilators fans. Quick ship of upblast and hooded rooftop centrifugal and axial fan blowers and propeller ventilators.


Roof Ventilators manufactured by experts!

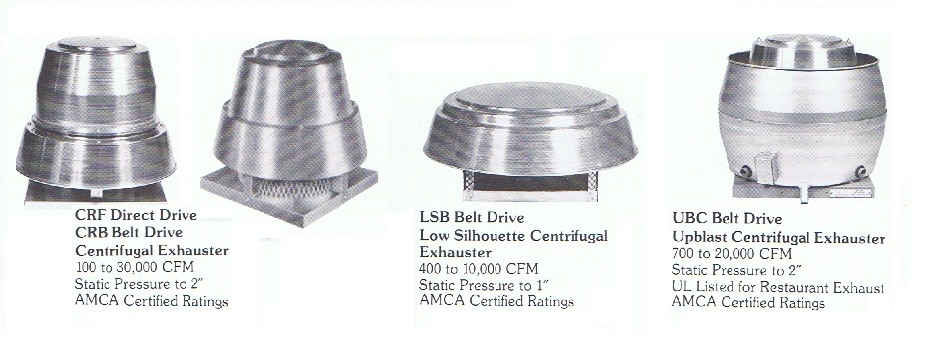

Centrifugal Downblast Domed Power Roof Ventilators are ideal for ventilation of commercial and institutional buildings. Fan features spun aluminum weather resistant ventilator housing with isolated fan-cooled motor-drive compartment. Self aligning regreasable ball bearings are standard.
The low silhouette spun aluminum centrifugal power roof ventilators, and louvered aluminum power roof ventilators are created for low cost general exhaust for a wide range of commercial uses. Both designs utilize standard variable pitch V-belt drive, adjustable motor support base, and non-overloading aluminum wheel, or axial prop.
Centrifugal Upblast Power Roof ventilators are designed to exhaust grease-laden air (UL 762) and for general ventilation applications (UL 705). Construction features sealed spun aluminum positive ventilation fan motor compartment, one-piece deep-spun venturi, built in grease trough and drain, aluminum non-overloading centrifugal wheel.

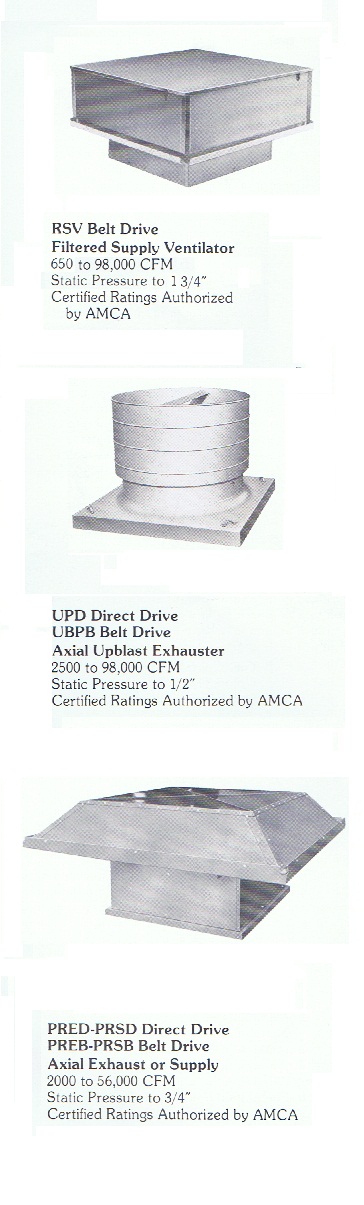

Filtered Air Supply Roof Ventilators are designed to supply untempered make-up air to environments, where vapors, mist, gases, or odors are removed by an exhaust system. Fan applications include garages, foundries, plants, kitchens, athletic clubs,etc. Fan features weather hood (galvanized, or epoxy coated) with insulation for moisture barrier, forward curved centrifugal blower, or axial propeller fan, removable access panel, rubber vibration isolators, and 1” aluminum washable filters.
Upblast Axial Power Roof Ventilators are general ventilation fan units for handling of large volumes of air. A distinctive feature of the fan is leak-proof butterfly damper with watertight sealed base. Wheel again is axial die formed prop, or cast aluminum adjustable pitch airfoil propeller.
Axial Hooded Power Roof Ventilators are high capacity exhaust fans, designed for removal of large volumes of air in warehouses, factories and mills. Fan features weather hood, rain channels and watertight sealed base with spun venturi. Wheel is either die formed propeller, or cast aluminum adj. pitch propeller. Bird screens, Insect screens and removable filter packages are optional.
Accessories: Prefabricated weather proof roof curbs, pitched to suit the roof slope are available in galvanized steel or aluminum. Automatic and Motor-Operated Backdraft Dampers provide weather protection and prevent backdraft. Aluminum hood, or aluminum hood/stack combination is available for corrosive environment. Side discharge is used for connection to supply / exhaust duct located outside on the roof. Safety Guard, Bird Screen, Insect Screen, or Filter Package are available upon request. Special protective coatings and alloys(aluminum, or stainless) are optional. Pre-wired and loose Safety Disconnect Switch, and Speed Controller are optional.
All models power roof
ventilators bear the AMCA Seal.
CANADA BLOWER Air Handling Units, Ceiling
Fans, Centrifugal Blowers, Constant Volume Regulators, Control Dampers,
Corrosion-Resistant FRP Fans, Energy Recovery Ventilators, Fan Coil
Units, Gravity Ventilators, HVAC Coils, Inline Fans, Kitchen
Ventilation Systems, Laboratory Exhaust Fans, Life Safety Dampers,
Louvers, Make-Up Air Units, Roof Mounted Fans, Sidewall Fans
CANADA BLOWER FANS
Large Diameter Industrial Reversible Ceiling Fans
Centrifugal Fans - Industrial & Commercial
Utility Set Fans
Propeller / Tube Axial / Mixed Flow Fans
PVC, Fiberglass, & SS Fans
Wall/Roof Exhaust/Supply Fans
Filtered Supply Fans
Pressure Blowers
Material Handling Fans
High Temperature & Process Fans
Fume Exhaust Fans
High Discharge/Dilution Fans
Kitchen Ventilation Systems
Roof fans Utility fans / blowers
Energy recovery ventilators
Inline fans Laboratory exhaust fans
Dampers
Wall propeller fans Fume exhaust
fans Electric duct heaters
Wall centrifugal fans Plenum fans
Louvers
Jet fans Roof curbs Gravity
ventilators
HVLS fans Make-up air units
Commercial kitchen hoods
Circulators Indoor air handling
units Kitchen pollution control units
Ceiling exhaust fans DOAS systems
Fan starters and controls
• Roof Mounted Fans & Gravity Ventilators
• Inline, Ceiling & Sidewall Fans
• Utility, Centrifugal & Radial Blowers
• Fume Exhaust Systems
• Laboratory Exhaust Systems
• Kitchen Ventilation Systems
• Energy Recovery Ventilators
• Make-Up Air
• Packaged Ventilation Systems
• Indoor Air Handlers & Fan Coils
• Coils
• Duct Heaters
• Dampers
• Louvers
http://nis-co.com/300/Index.html
http://nis-co.com/301/Index.html
http://nis-co.com/302/Index.html
http://nis-co.com/303/Index.html
http://nis-co.com/304/Index.html
http://nis-co.com/305/Index.html
http://nis-co.com/306/Index.html
http://nis-co.com/307/Index.html
http://nis-co.com/308/Index.html
http://nis-co.com/309/Index.html
http://nis-co.com/310/Index.html
http://nis-co.com/311/Index.html
http://nis-co.com/312/Index.html
http://nis-co.com/313/Index.html
http://nis-co.com/314/Index.html
http://nis-co.com/315/Index.html
http://nis-co.com/316/Index.html
http://nis-co.com/317/Index.html
http://nis-co.com/318/Index.html
http://nis-co.com/319/Index.html
http://nis-co.com/320/Index.html
http://nis-co.com/321/Index.html
http://nis-co.com/322/Index.html
http://nis-co.com/323/Index.html
http://nis-co.com/324/Index.html
http://nis-co.com/325/Index.html
http://nis-co.com/326/Index.html
http://nis-co.com/327/Index.html
http://nis-co.com/328/Index.html
http://nis-co.com/329/Index.html
http://nis-co.com/330/Index.html
http://nis-co.com/331/Index.html
http://nis-co.com/332/Index.html
http://nis-co.com/333/Index.html
http://nis-co.com/334/Index.html
http://nis-co.com/335/Index.html
http://nis-co.com/336/Index.html
http://nis-co.com/337/Index.html
http://nis-co.com/338/Index.html
http://nis-co.com/339/Index.html
http://nis-co.com/340/Index.html
http://nis-co.com/341/Index.html
http://nis-co.com/342/Index.html
http://nis-co.com/343/Index.html
http://nis-co.com/344/Index.html
http://nis-co.com/345/Index.html
http://nis-co.com/346/Index.html
http://nis-co.com/347/Index.html
http://nis-co.com/348/Index.html
http://nis-co.com/349/Index.html
http://nis-co.com/350/Index.html
http://nis-co.com/351/Index.html
http://nis-co.com/352/Index.html
http://nis-co.com/353/Index.html
http://nis-co.com/354/Index.html
http://nis-co.com/355/Index.html
http://nis-co.com/356/Index.html
http://nis-co.com/357/Index.html
http://nis-co.com/358/Index.html
http://nis-co.com/359/Index.html
http://nis-co.com/360/Index.html
http://nis-co.com/361/Index.html
http://nis-co.com/362/Index.html
http://nis-co.com/363/Index.html
http://nis-co.com/364/Index.html
http://nis-co.com/365/Index.html
http://nis-co.com/366/Index.html
http://nis-co.com/367/Index.html
http://nis-co.com/368/Index.html
Repair
of industrial radial ventilators, fan wheels, blower impellers,
stainless steel ventilators, combustion pressure blowers, high
temperature industrial ventilators, material handling blower fnas,
paddle radial ventilators / fans, high temperature oven ventilators,
compact blowers, blowoff fans blowers, blower blade impellers, SST
blowers & fans, wall exhaust blowers, duct ventilators, roof / wall
supply ventilators, industrial high pressure ventilators, stainless
ventilators, explosion-proof fans, replacement ventilators. OEM industrial and turbo fans and
blowers ventilators;
high temperature pressure blowers and high temperature plug fans; oven
exhaust
fan blowers; filtered air make-up fan blowers.
Industrial
and commercial heating, ventilation and air-conditioning (HVAC)
equipment, high pressure blowers, industrial fans and ventilators, high
temperature oven fans and blowers, centrifugal and axial blowers and
fans. We offer SST stainless steel packaged fan, blowers, ventilators
and custom industrial ventilating equipment.
SQA fans have been selected for well over 100,000 industrial and
commercial installations worldwide. The SQA fans are known for their
exceptional durability and efficiency, and are continually updated and
expanded to meet today’s requirements and tomorrow’s visions. This
versatile innovative design packs maximum performance into a minimum
footprint.
Canada Blower Duct Fans are designed forlow pressure ventilation and
industrial process applications. Uses include heat, smoke and fume
removal; process drying with ambient or pre-heated air; comfort and
process cooling and general ventilation. All applications can be
handled in either supply or exhaust configurations. Numerous
modifications and fan accessories make the Vaneaxial Fan suitable for a
wide range of systems.
In applications where equipment space is at a premium, the compact
flow-through design of the Duct Fan can reduce system space
requirements by more than 50% over conventional centrifugal fans. The
straight, in-line design eliminates the need for costly,
space-consuming transitions, elbows and inlet boxes.
Canada Blower Duct Fans feature steel wheels in all sizes. Each wheel
is designed to maximize fan performance by optimizing the shape, number
and pitch of blades with hub diameters. Steel wheel and heat-fan
construction with bearings tunnel cooling system is capable for
handling high airstream temperatures and ideal for industrial oven and
dryer exhaust systems where pressure requirements are minimal and
compact light-weight designs are advantageous. With heat fan
construction Duct Fans are capable of handling airstream temperatures
to 725 deg. F.
Canada Blower Duct Fans provide relatively large volumes of air (to
100,000 CFM) at static pressure up to 3" WG).
